IOL Explantation Set by Snyder/Osher

Astigmatismus neutral IOL explantation through smallest incisions

Thumb

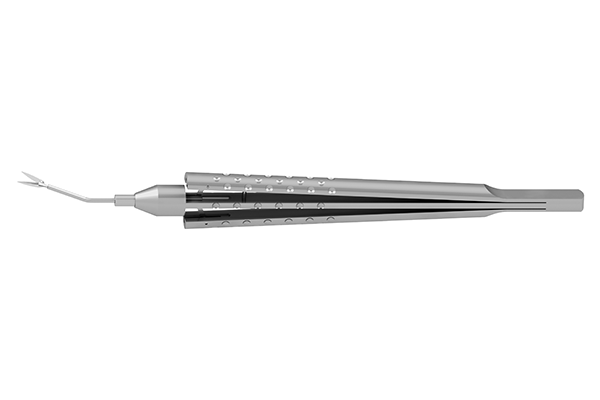

SNYDER-OSHER IOL SCISSORS

  • Highest cutting efficiency thanks to sturdy and sharp blades
  • No sliding of the lens while cutting thanks to the grooves on the lower cutting blade
  • Wide opening angle of the blades due to the special handle geometry
  • for cutting acrylic and silicone foldable IOLs lower notched blade to create IOL traction 18 gauge / 1.2 mm shaft overall length 150 mm
  • H5: G-32996 long model, 4.5 mm blades
  • H5: G-32998 short model, 3.5 mm blades
Thumb

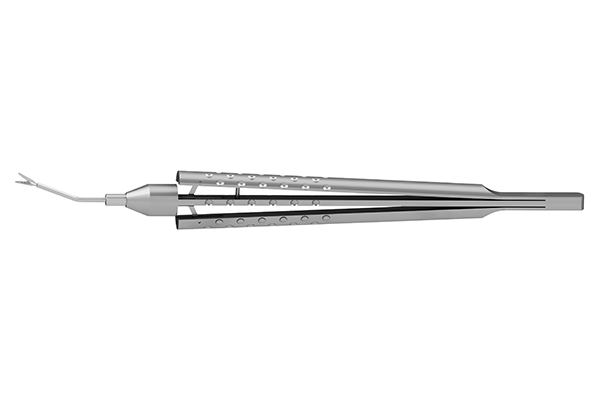

SNYDER-OSHER IOL FORCEPS

  • Secure grip on the lens during cutting inside the capsular bag
  • Easy removal of lens fragments is facilitated by special grooves in the grip area
  • to hold the IOL while cutting it inside the capsular bag 2 mm long jaws with 0.5 mm serrated tips 22 gauge / 0.7 mm lightly curved shaft overall length 99 mm
  • H5: G-32997

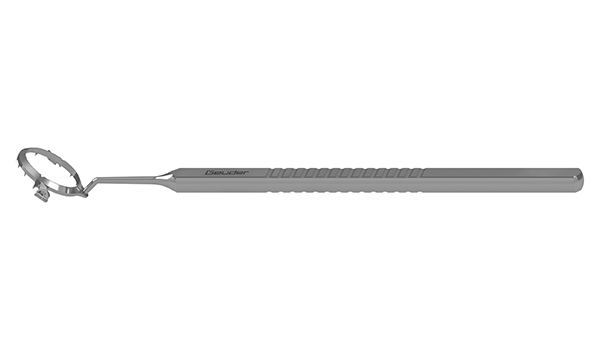

Globe Fixation Ring and needle guide for flanged intrascleral IOL Fixation

Thumb
Order Yamane Double-Needle Stabilizer
Challenge

When performing Yamane’s double-needle technique, you find your sclerotomy sites by combining the use of an axis marker, caliper, and ink. In addition, when piercing the conjunctiva and advancing through sclera, you have no control over recommended insertion angles for creating the scleral tunnels. The combination of these variables is a challenge for reproducibility and standardization.

Resolve

The Yamane Double-needle Stabilizer helps you simplify identification of the sclerotomy sites and provides control over the insertion angles when creating the scleral tunnels. Thanks to its ring shape and fixating teeth, also provides excellent fixation of the eye when piercing it with the needles.

Instrument Features

The instrument incorporates two landmarks for visualization of the sclerotomy sites, located at 2 mm from limbus and 180° apart. Eliminating the need of axis markers, calipers, or ink. Because it is difficult to pierce a needle at an angle set by human hands, the instrument features two grooved platforms for passing the needles through the ring-shape body. Making it possible to insert the needles at set angle of 20° with respect to the corneal limbus, and 10° with respect to the iris surface. To create reproducible scleral tunnels and avoid putting stress on the IOL haptics. H5: G-31496 YAMANE Double-Needle Stabilizer 30G overall length 110 mm | H5: G-31497 YAMANE Double-Needle Stabilizer 27G overall length 110 mm

The Instruments

Thumb

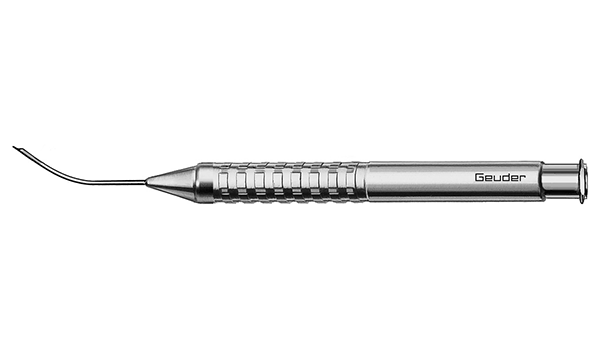

0.3 mm aspiration port, texturized tip G-22100

Order Now
Thumb

front opening, 22 gauge / 0.7 mm G-22101

Order Now
Thumb

for premature infants, fenestrated, 7 mm blades, overall length 34 mm G-17023

Order Now
Thumb

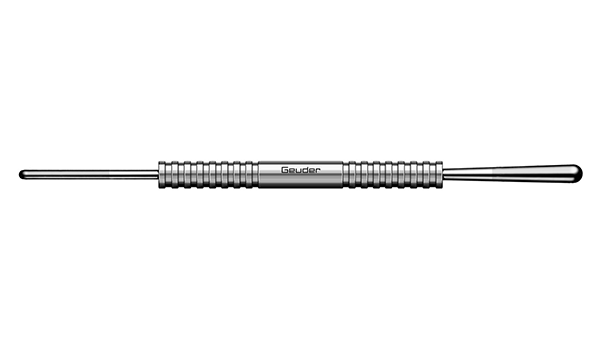

double-ended, 2 mm and 4 mm diameter, diamond dusted tips, overall length 120 mm G-32714

Order Now
Thumb

double-ended, 2 mm and 4 mm diameter, diamond dusted tips, overall length 120 mm G-32714

Order Now
